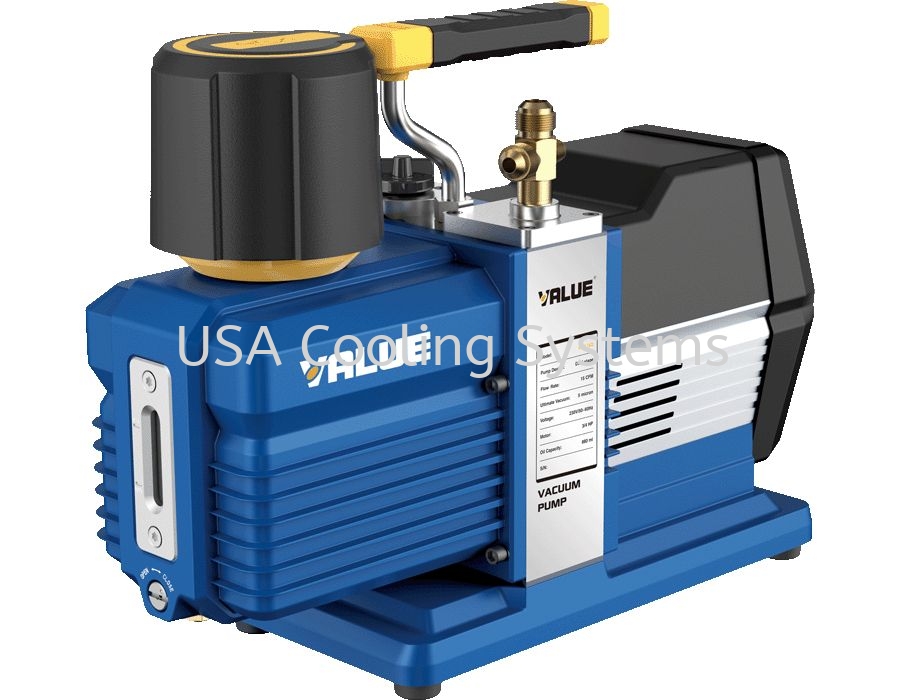

Double Speed, Super Vacuum Pump
Industrial Grade Design
DC Motor
Integrated Dual Vacuum Pump
Oil Back Flow Prevention
Oil Drain Valve
Sight Glass
Suitable for evacuation of large commercial refrigeration, central AC systems.
With industrial grade technology, VRP-15D solves the problems of long time evacuation, inadequate vacuum level in the service for large commercial refrigeration or central AC systems. The dual stage rotary vane pump and inverter motor lead to faster evacuation and a deeper vacuum. Intergrate pump cylinder and built-in oil back-flow prevention assure the superior performance and reliability. The combination of enhanced technology and aesthetic design enable the VRP-15D to be the top of class product.
Industrial Grade Design
- High Quality, Super High Vacuum
- High Evacuation Performance
DC Motor
- Light, Fast
Integrated Dual Vacuum Pump
- High Vacuum Level
Oil Back Flow Prevention
- No system oil contamination during power failure
Oil Drain Valve
- Ball valve design, easier to drain
Sight Glass
- Easy to see, eliminate oil shortage
Suitable for evacuation of large commercial refrigeration, central AC systems.
With industrial grade technology, VRP-15D solves the problems of long time evacuation, inadequate vacuum level in the service for large commercial refrigeration or central AC systems. The dual stage rotary vane pump and inverter motor lead to faster evacuation and a deeper vacuum. Intergrate pump cylinder and built-in oil back-flow prevention assure the superior performance and reliability. The combination of enhanced technology and aesthetic design enable the VRP-15D to be the top of class product.
| Model | VRP-15D |
| Flow Rate | 15 CFM |
| 425 L/min | |
| Ultimate Vacuum | 0.67 Pa |
| 5 micron | |
| Pump Design | Dual stage |
| Motor Power | 3/4 HP |
| Inlet Port | 1/4", 3/8", 1/2" SAE |
| Oil Capacity | 880 ml |
| Dimensions | 414 x 152 x 310 mm |
| Weight | 15 kg |
Inquiry - Value Vacuum Pump VRP-15D
