Features:
Available model & size:
- Only turns 1/4 circle to make valve fully open or fully close.
- No pressure drop in flow.
- Turning stop for full open or full close.
- Full Open and Full Close mark on top of valve stem.
- Two-direction flow is available.
- Argon arc welded structure.
- Explosion-proof valve stem design.
- Modified PTFE sealing.
- Inside, liquid accumulation is avoided.
- Could be mounted on the control panel.
Available model & size:
- 1/4'' (HBV-6)
- 3/8'' (HBV-10)
- 1/2'' (HBV-12)
- 5/8'' (HBV-16)
- 3/4'' (HBV-19)
- 7/8'' (HBV-22)
- 1-1/8'' (HBV-28)
- 1-3/8'' (HBV-35)
- 1-5/8'' (HBV-42)

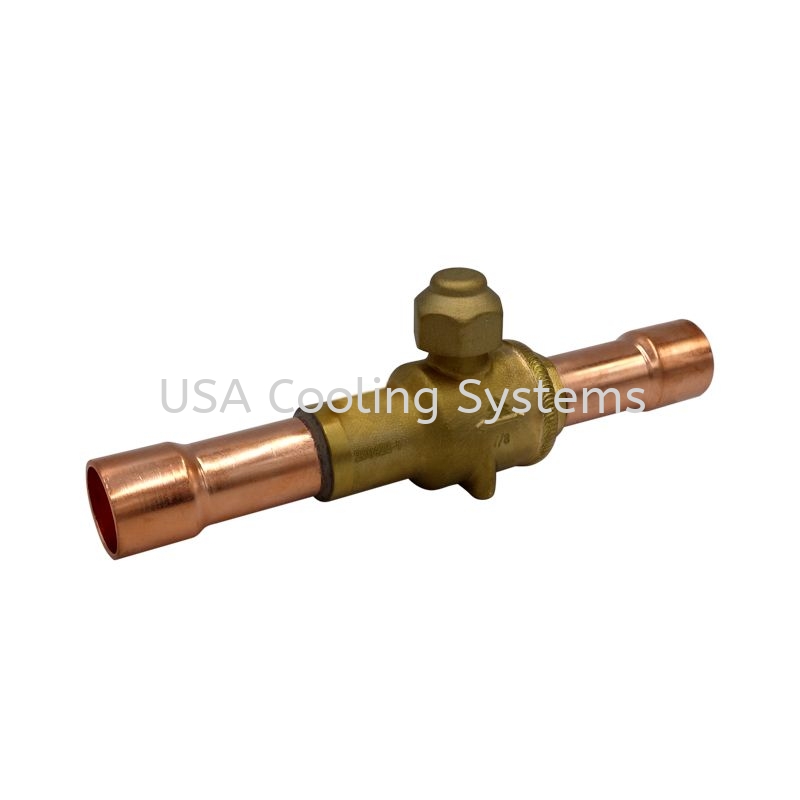

- Hongsen Ball Valve is a manually regulated shut-off valve, which is applicable to two-direction flow.
- Hongsen Ball Valve is used on the liquid, suction and hot vapour piping of the freezer, cold store and air conditioning unit.
- The valve seat of Hongsen Ball Valve is well sealed with perfect sealing performance.
- Hongsen Ball Valve is a through-type ball valve with maximum flow rate and wide range of operating temperature.
- Hongsen Ball Valve is equipped with a secondary sealing cap and the metal wire could be used to prevent the sealing cap from missing and avoid any mistake operation in maintenance.
